Last month, I got a set of SW-MOTECH mirror wideners for the ZZR. I
was lucky and got them just before Twisted Throttle stopped carrying them
for this bike. Recently, on the ZZR1200.net forums, someone asked a
question about these extenders. I did a little research and found an
alternative
here
that were made for the ZR-7S but are supposed to fit the ZZR. They
cost around $60 shipped so I figured I'd go ahead and pick up a set and
see if they're as nice as the SW-MOTECHs.
Some of you may think I've
gone overboard with this comparison but I don't. I LIKE to be able
to see what's behind me. That's what mirrors are supposed to do and
what the stock mirror position does not do.
|
|

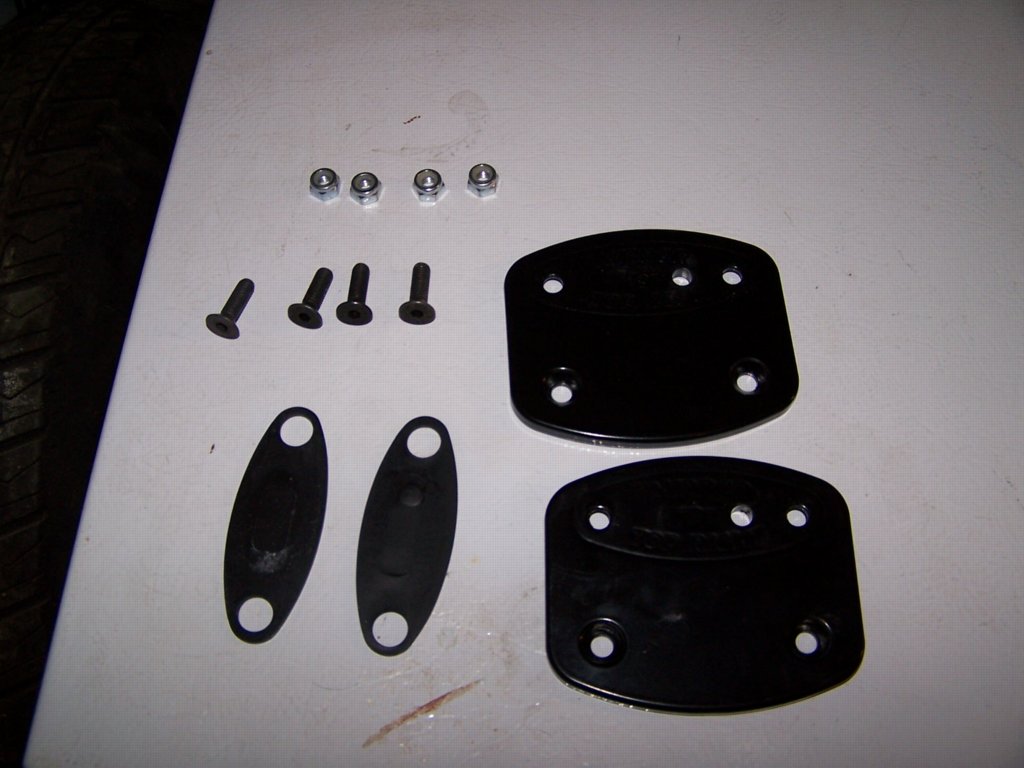

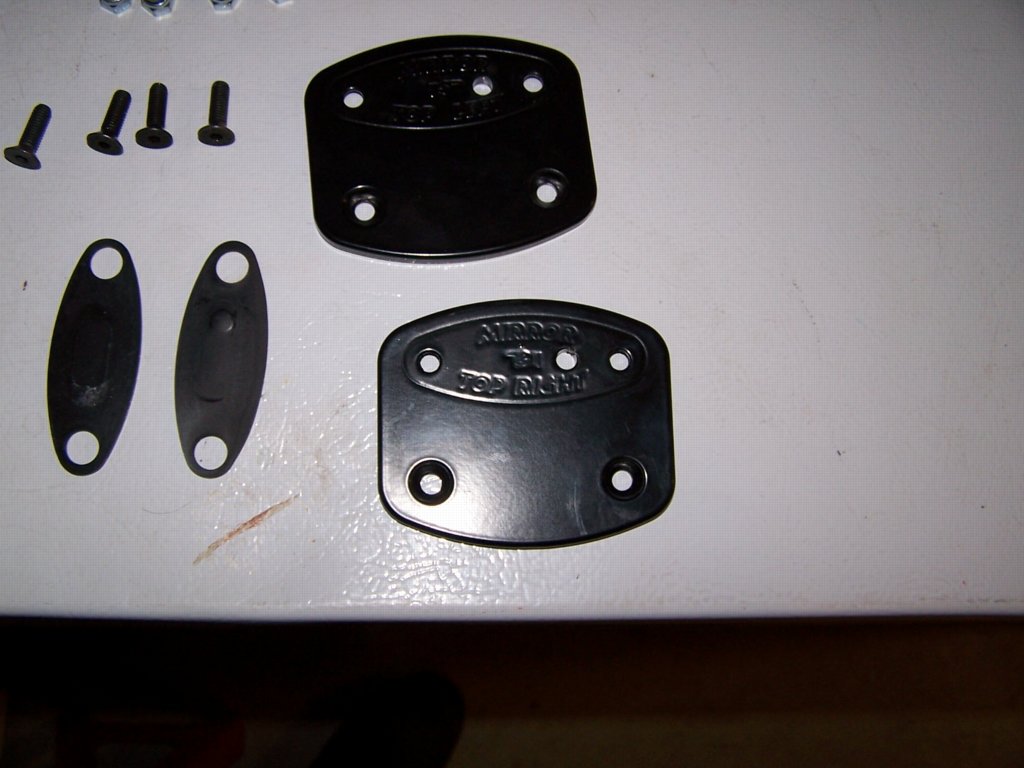

First off, here's what you get in the kit. Note that the plates have
some extra small holes in the middle where the mirrors mount. I
think this is an extra hole needed by the ZR-7S because the ZZR doesn't
need them. The plates are also setup for each side. This
doesn't matter either as long as you align the plate to the bike and
mirror properly. Again, this must be something specific to the
ZR-7S. Also note the small black screws. There are 4 of them.
You'll need to go buy 4 more. You'll see why later. I found
EXACT matches at Ace for $.75 each. Same thread, same color, same
shape, same head. They have a 4mm hex head. |
|
|
|

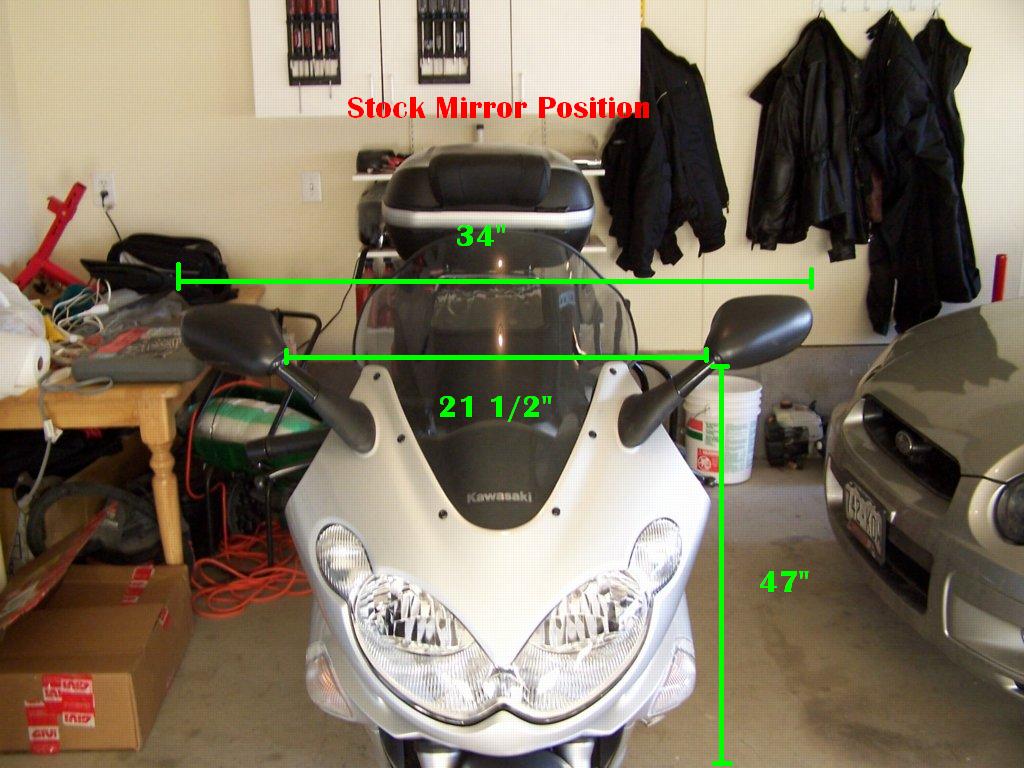

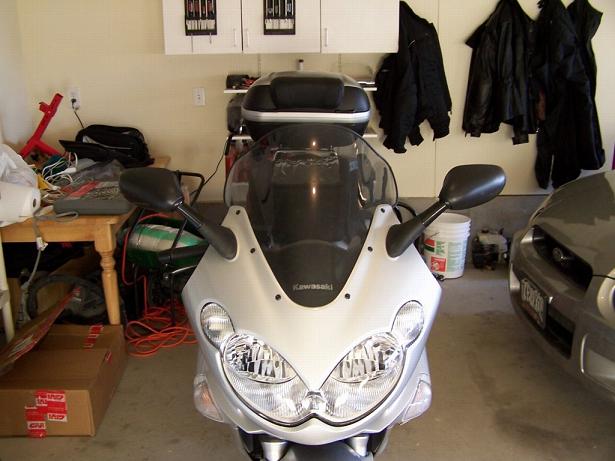

Here's pictures of the stock mirror setup with measurements. |
|
|
|

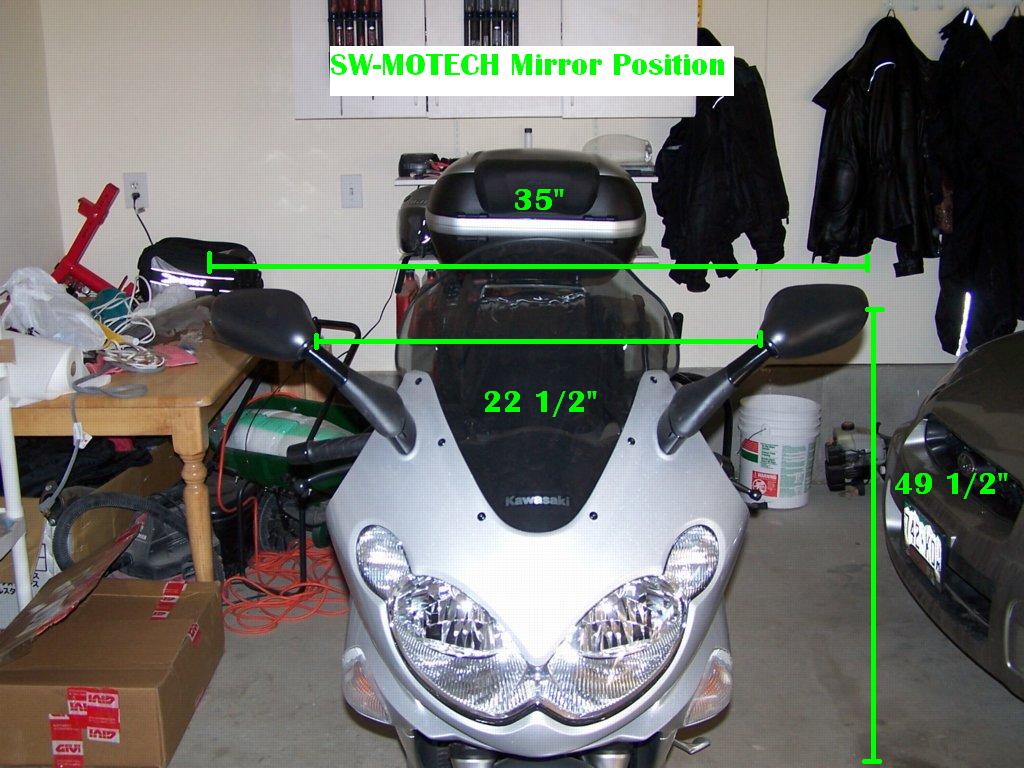

Here's pictures of the SW-MOTECH mirror setup with measurements. |
|
|
|

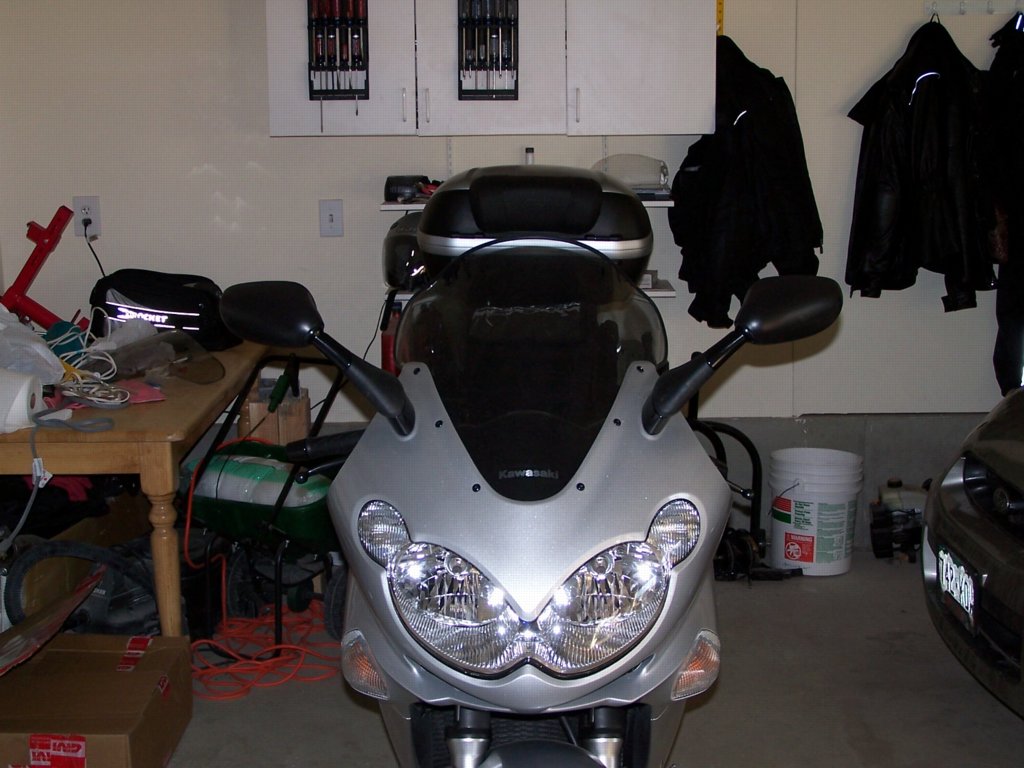

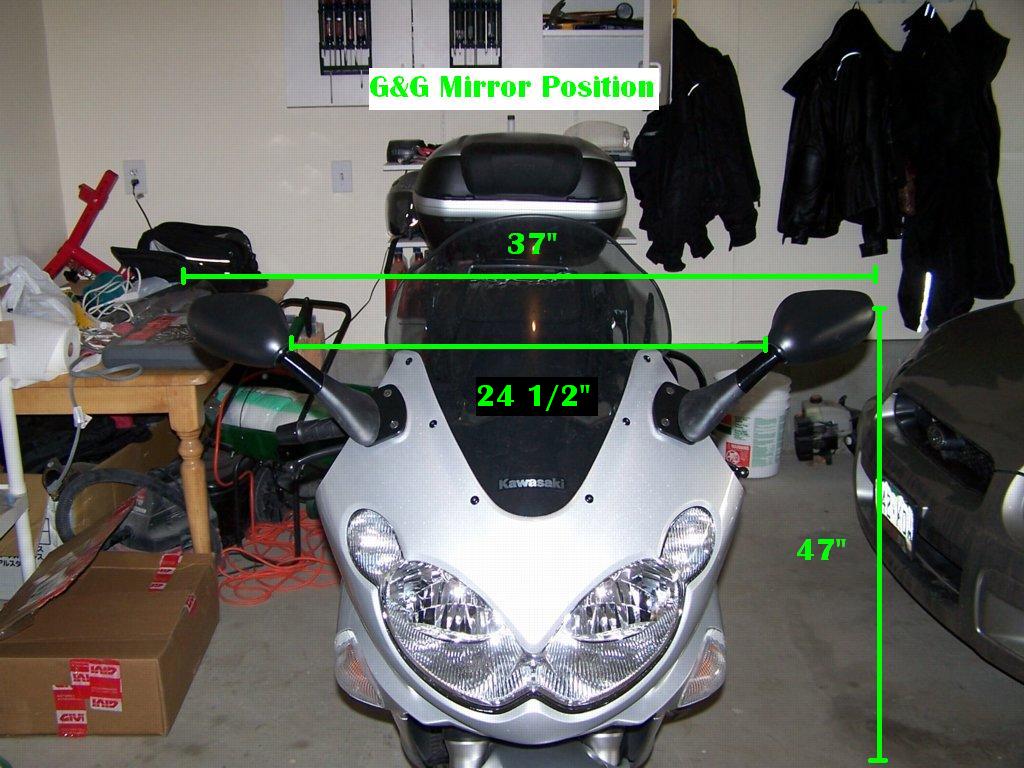

Here's pictures of the G&G mirror setup with measurements. |
|
|
With stock screws |

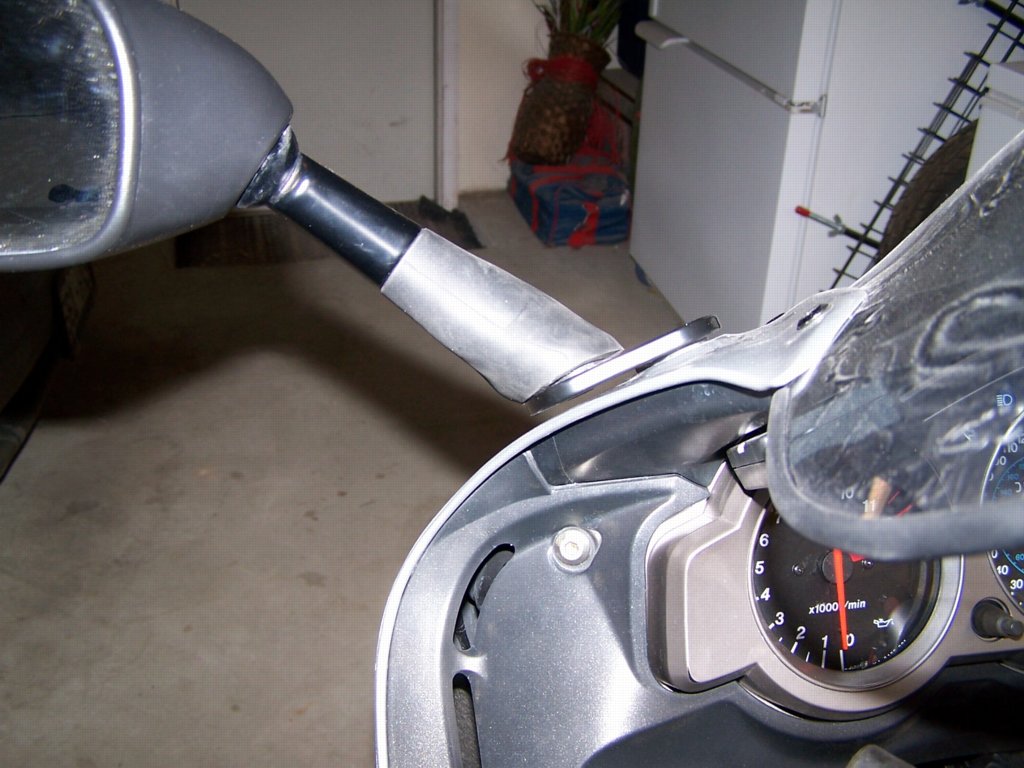

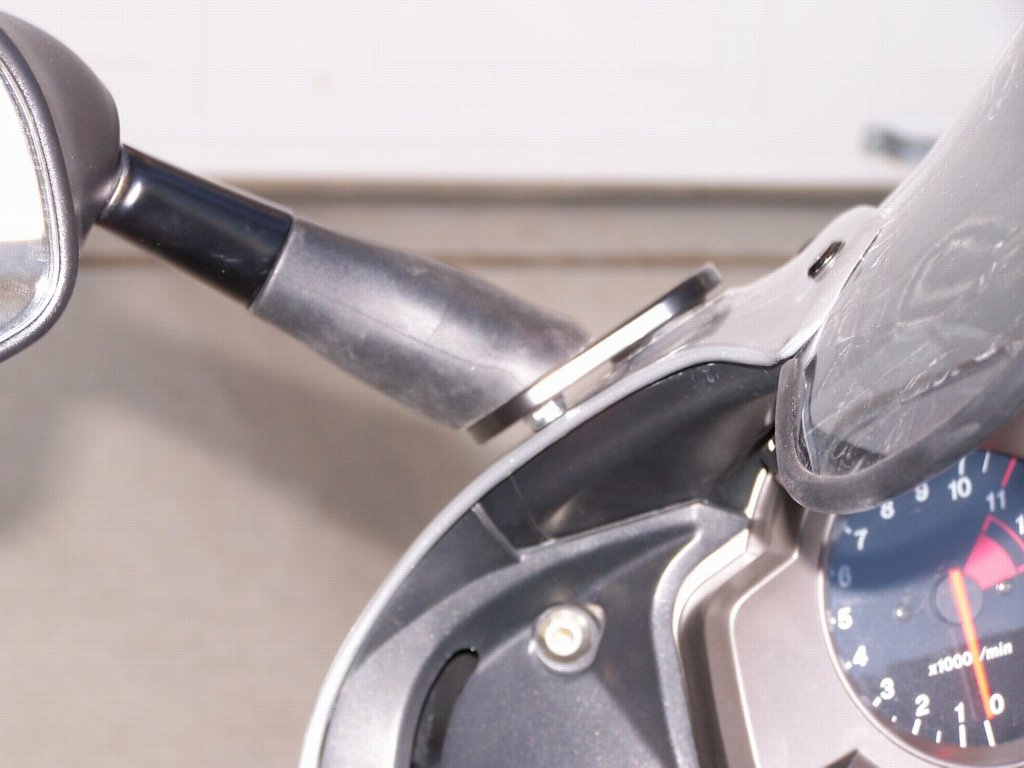

Remember those screws? Here's why you need them. If you use
just the stock screws from when you remove the mirrors, they'll sit right
on the plastic after install. I noticed this just after the test
ride with the G&Gs installed. The ZR-7S must have beveled head
screws like the ones supplied with this kit. |

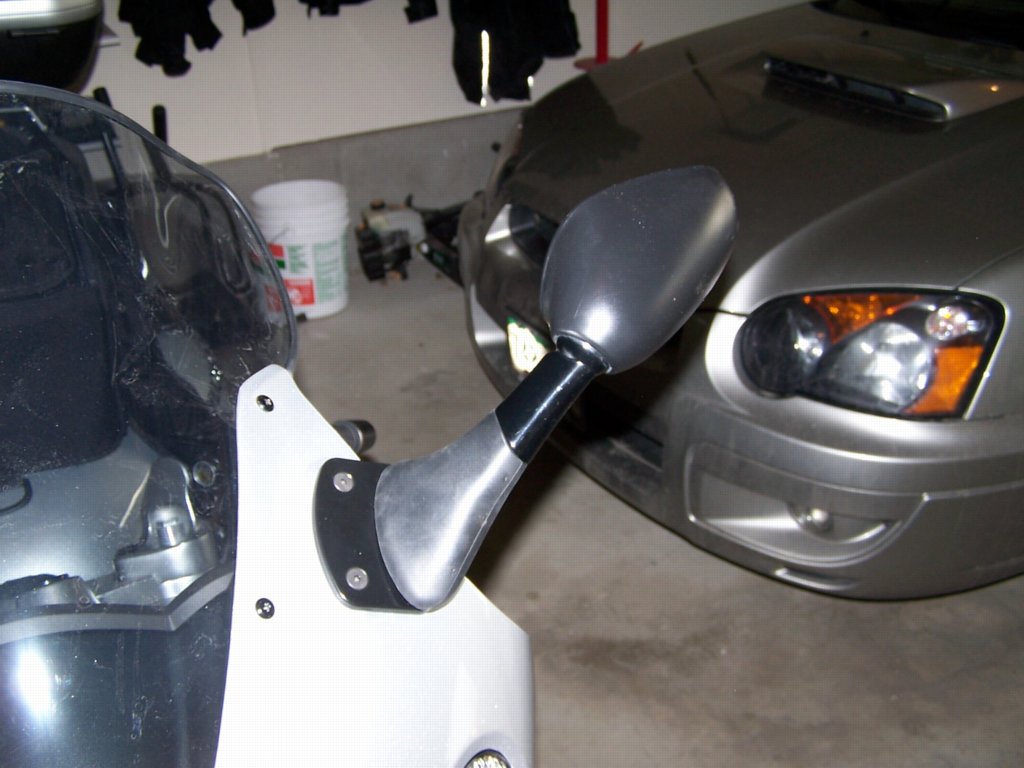

With screws purchased from Ace HW. |
|
Width at outside of the mirrors:
Stock - 34"
SWM - 35"
G&G - 37" |
Width at the knuckle of the mirror:
Stock - 21 1/2"
SWM - 22 1/2"
G&G - 24 1/2" |
Height at middle of the mirror:
Stock - 47"
SWM - 49 1/2"
G&G - 47" |
| |
My conclusion: Get the G&Gs. They cost less, look nicer, and are
wider and function better than the SW-MOTECHs. Ideally, you want your mirrors to sit out further, not higher. Although, as you can see, by
adding height with the SWMs, it does widen the mirrors and they DO function well. It's just that the G&Gs work better for less.
Update: It turns out that
TwistedThrottle.com started carrying the SW-MOTECHs again. They've also reduced the price to $60 from $85.
| |
